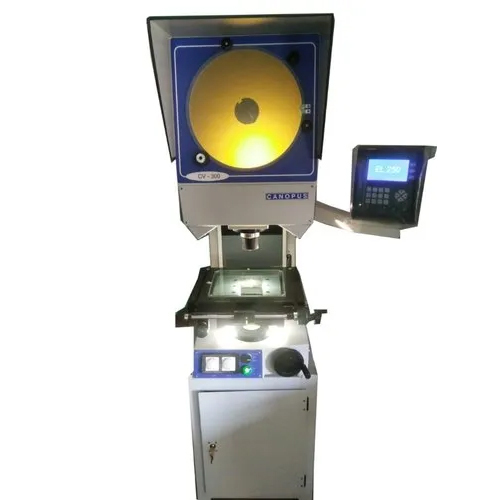

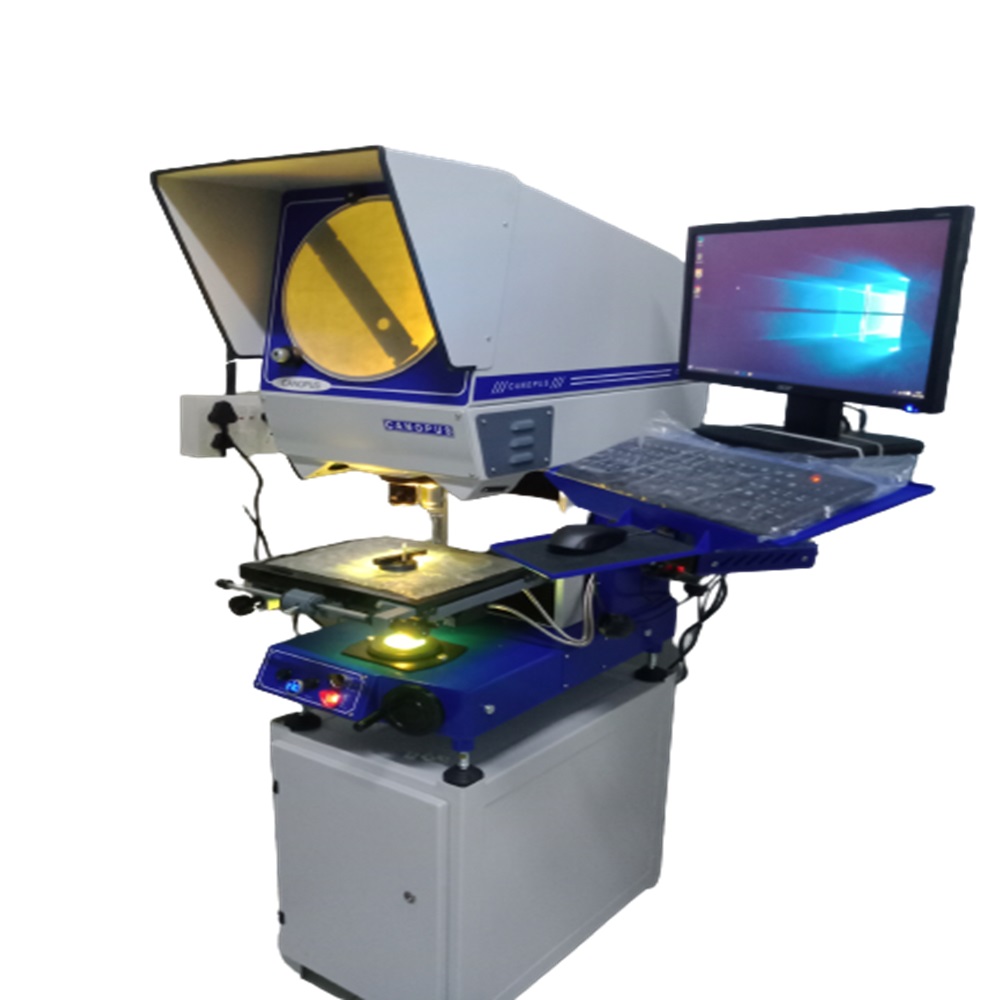

Vertical Profile Projector

To encourage the never ending demands of the industry, we are betrothed in manufacturing, retailing, wholesaling and supplying a huge collection of the Canopus Vertical Profile Projector. Our products are mainly demanding for the inspection of engineering products like pressed components, flat components, precision machined parts, etc. The offered range is made by using the quality-tested components and sophisticated techniques, under the strict instructions of our skilled engineers. Further, we ensure to provide the excellent services for the Canopus Vertical Profile Projector in different specifications and at market leading prices.

Specification

Usage/Application	Laboratory
Brand	Canopus
Material	Stainless Steel
Automation Type	Automatic
Cooling System	Fan
Measuring System	Micrometers
Accuracy	(3.5+L/55)um
Focusing	100 mm
Resolution	5/1/0.5 micrometer
Work Stage Table Top Area	350x280 mm

Advanced Measurement Capabilities

The Vertical Profile Projector leverages high-precision optical projection theory to deliver non-contact measurement of machined parts. It supports a range of magnifications (10X, 20X, 50X, 100X, depending on the objective used), ensuring adaptability for various inspection requirements across multiple industry sectors.


Intuitive Design and Operation

With its manual operation and digital readout assistance, users benefit from straightforward controls. The fine adjustment focusing knob and easy-to-navigate LCD/LED screen facilitate high accuracy, while the 360-degree rotatable screen enhances versatility and usability during measurement tasks.


Durable Build for Versatile Environments

Constructed from stainless steel and featuring a precision-ground glass worktable, this projector is built to withstand rigorous lab and industrial conditions. Multiple color options (white, blue, yellow) and compatibility with external metrological accessories make it an excellent choice for diverse operational needs.
